Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
A metal bar of length L= 0.5 meters moves to the left at 2 m/s in a constant magnetic field of 250 mT (pointing into the page). The bar moves on some conducting rails, connected by a resistor of 10 ohm. What is the size and direction of the induced current?
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
A mass spectrometer is used to separate aluminum isotopes. The lightest aluminum isotope ( 13 protons and 10 neutrons )and the heaviest aluminum isotope ( 13 protons and 18 neutrons ) need to be separated by 15 centimeter on the detector of the mass spectrometer. The aluminum is ionized once ( 1 electron is missing ). Assume the mass of a neutron is the same as the mass of a proton. Pick the velocity and the magnetic field.
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
A velocity selector is supposed to select things traveling at 100 m/s. The separation between the plates that produce the electric field is 0.25 m. The magnetic field is 0.02 T.
a) What voltage is required across the plates to make the velocity selector work as desired?
b) What happens to things traveling slower?
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
The solenoid has 1250 turns of wire carrying a current of 12 A. It is a wound as shown in the diagram.
a) What is the magnetic field at the center of the solenoid?
b) Which end of the solenoid is the south end? Why?
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
A pair of long parallel wires carry current in opposite directions. Wire 1 carries 4 A as shown. Calculate the size and direction of the force on wire 2 due to wire 1. Assume a side by side length of 3 m, and a separation of 0.1 m.Start from the two current carrying wires and show all steps.
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
Two long parrallel power lines are separated by a sistance of 4 meters. They each carry a current of 10 A, but in opposite directions. what is the force on a 1 meter section of the wires?
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
A thin 11 cm long solenoid has a total of 400 turns of wire and carries a current of 2.0 A. Calculate the field inside near the center.
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
A cicrular coil of wire has a diameter of 20. 0 cm and contains 12 loops. The current in each loop is 2.5 A and the coil is placed in a 1.8 T External magnetic field. Determine the maximum torque exerted on the coil by the field.
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
The two wires of a 2.5 m long appliance cord are 3. 5 mm apart and carry a current of 7. 0 A dc. Calculate the force one wire exerts on the other.
Physics Magnetism,Magnetic Effects Of Current Level: Misc Level
If the magnetic field in a traveling EM wave has a peak value of 12. 5 nT, what is the peak value of the electric field strength?
Physics Magnetism,Magnetic Effects Of Current Level: Middle School
Four long aires are located at the corners of a square 20 cm on a side. Each carries a current of 4A in the directions shown in the diagram below . Find the magnitude of the net magnetic field at the center of the square.Question Diagram
Physics Magnetism,Magnetic Effects Of Current Level: University

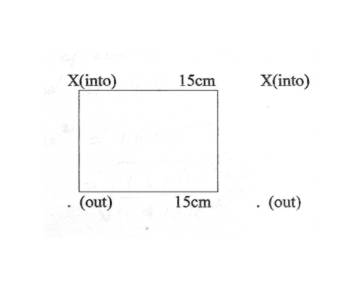

Four long wires in the figure carry 2.5A current in the directions indicated. Find the net force per unit length on the wire at the lower left. All sides are 15 cm in length.
Question Diagram
Physics Magnetism,Magnetic Effects Of Current Level: University
Three circular loops of wires of radius R 2R 3R respectively are made into concentric circles. A clockwise current of 3A exists in the innermost and outermost loops. Determine the magnitude and direction in the middle loop if the net field at the center is zero.
Physics Magnetism,Magnetic Effects Of Current Level: University
SolenoidYou have a spool of thin wire that can handle a maximum current of 0.5A. If you could wind the wire into a loop- like coil 20cm in diameter how many turns should the coil have if the magnetic field at its center is to be 2.3 mT at the maximum current.
Physics Magnetism,Magnetic Effects Of Current Level: University

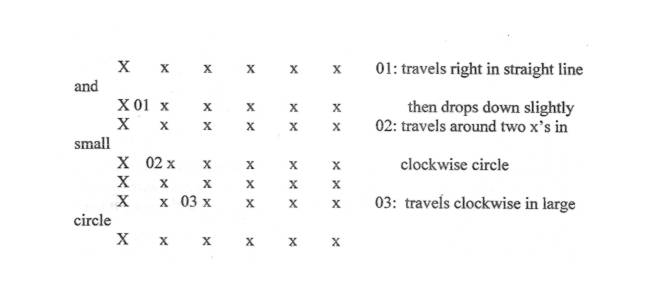

Three particles have identical charges and masses. They enter a constant magnetic field and follow the paths shown in he diagram. Which particle is magnetic field and follow the paths shown in thediagram. Which particle is moving the fastest and which is moving the slowest. Justify your answers.Question Diagram
